Swan Series

3000-5000W

Power

45-90Km/h

Speed

70-90Km

Range

72V40Ah/52Ah

Battery

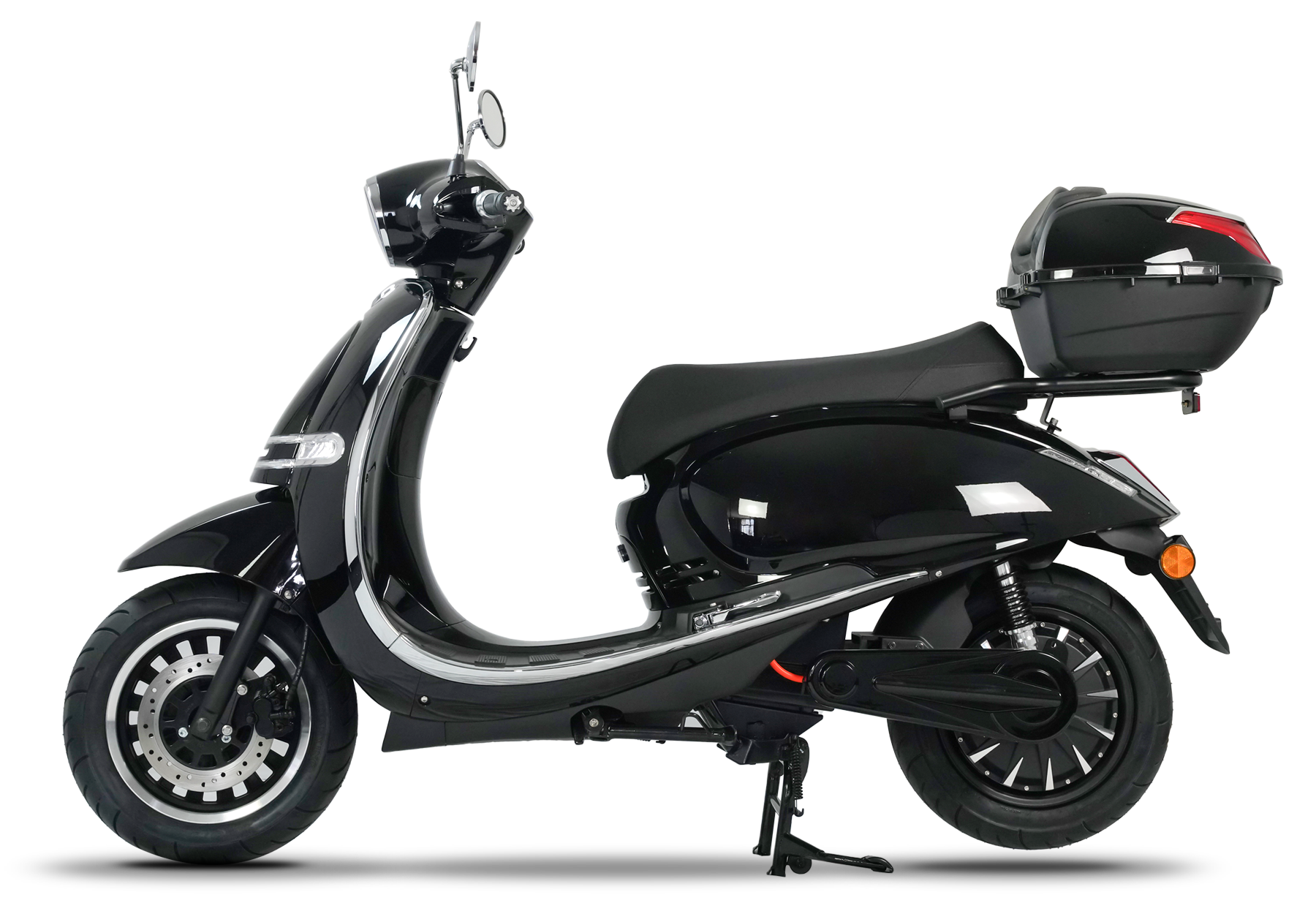

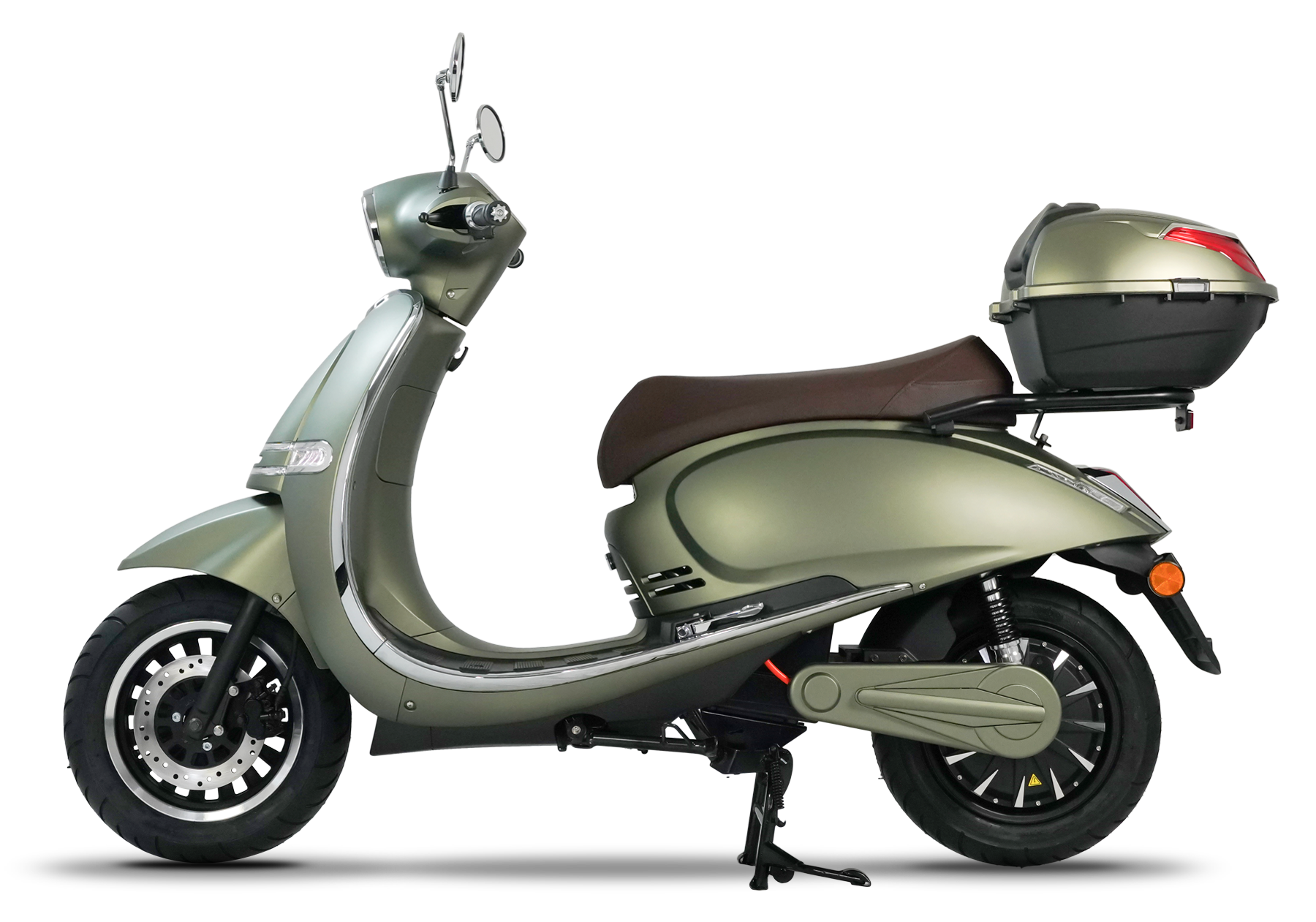

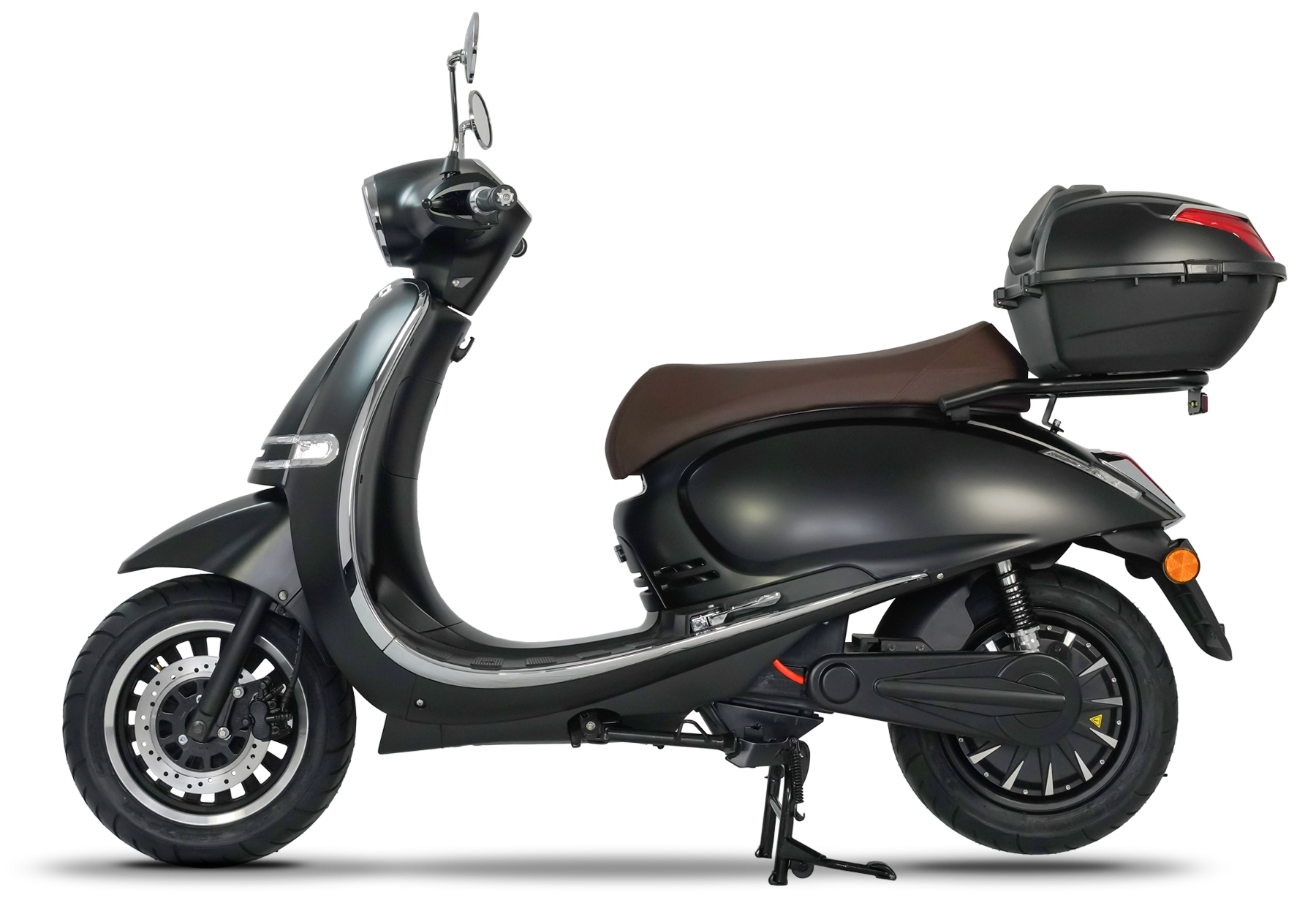

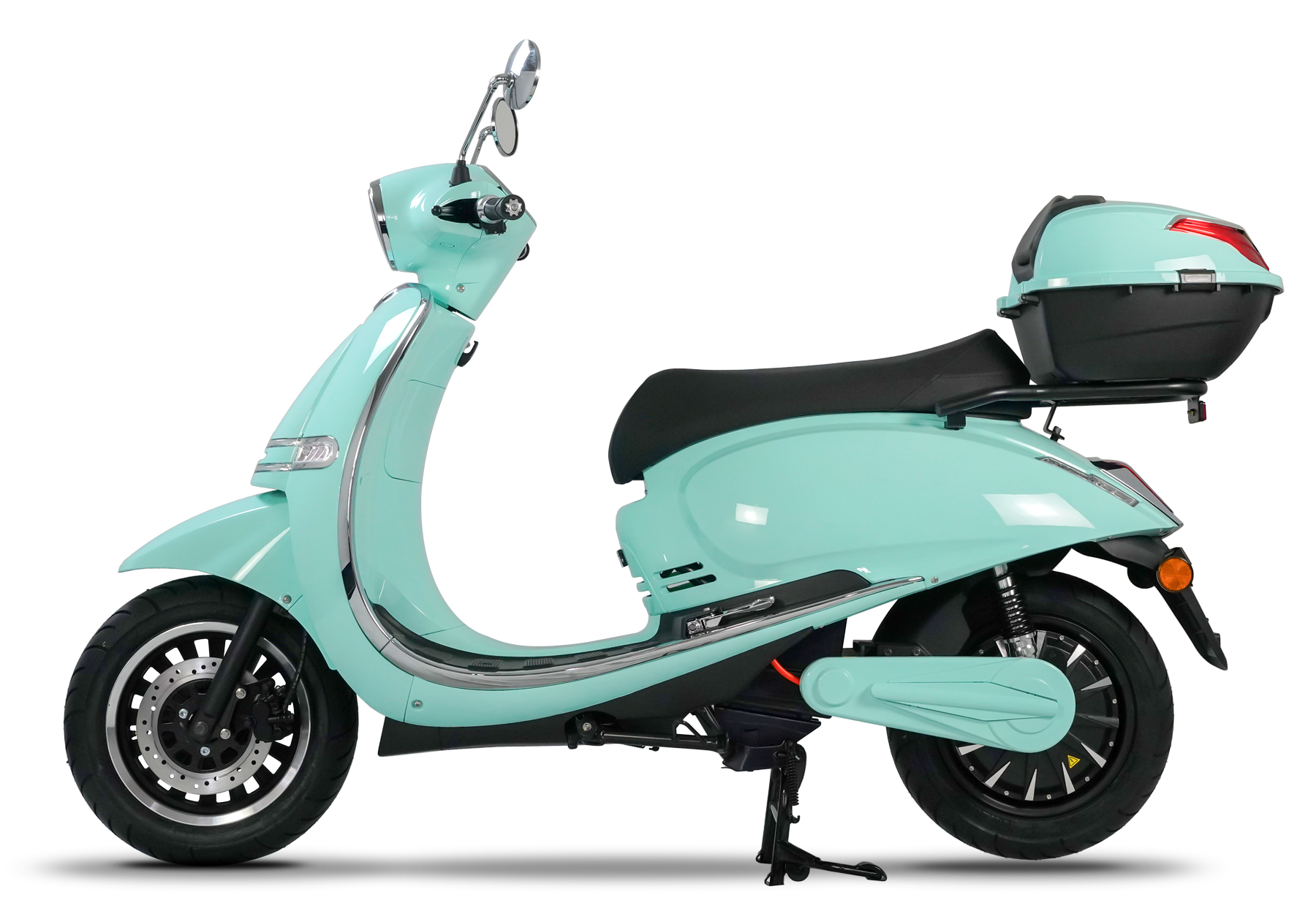

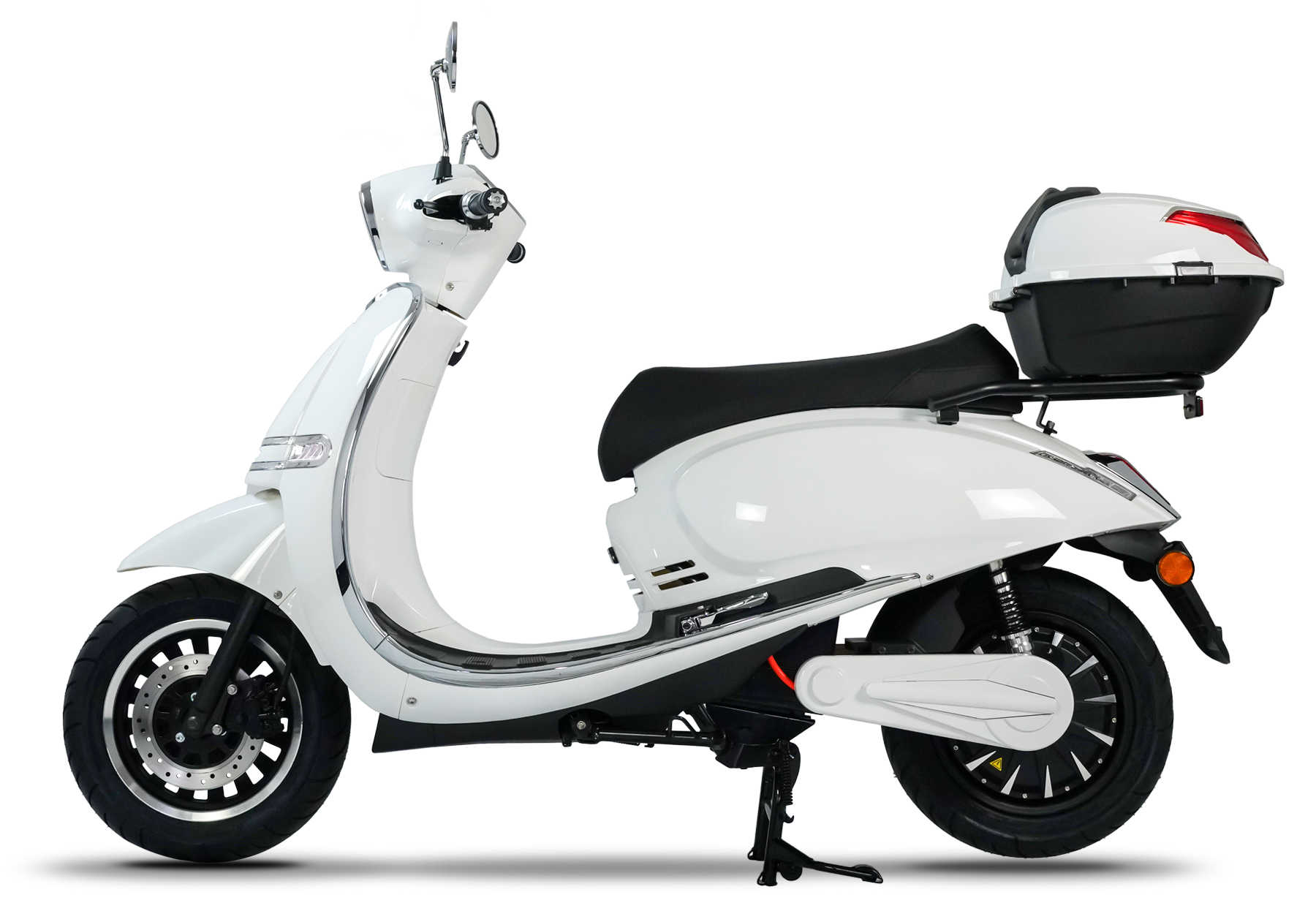

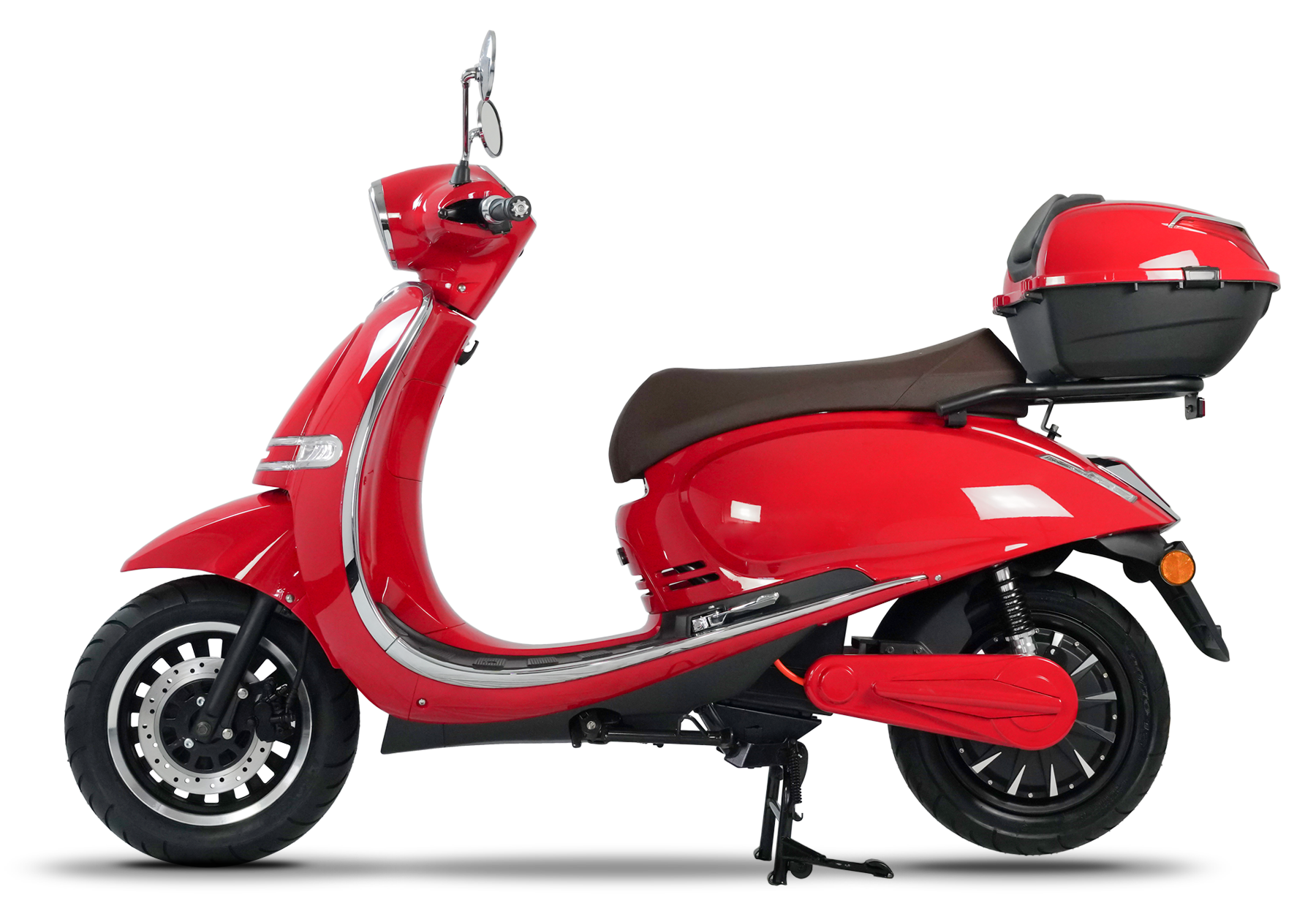

Swan Series Electric Scooter

High-Performance Electric Scooter for Urban Mobility & Global Distribution

The Swan Electric Scooter Series is a versatile urban mobility solution developed by a professional electric scooter manufacturer and supplier. Designed for city commuting, it features multiple motor options from 3000W to 5000W to meet different market demands.

With a high-efficiency drive system and lithium battery, it delivers smooth performance, stable riding, and reliable range. Ideal for distributors, wholesalers, and OEM partners, the Swan series offers scalable supply and customization for global markets.

Get a Quote

Stand Out · Show Off

Flexible. Powerful. Market Ready.

Electric Scooter Platform for Distributors & OEM Partners

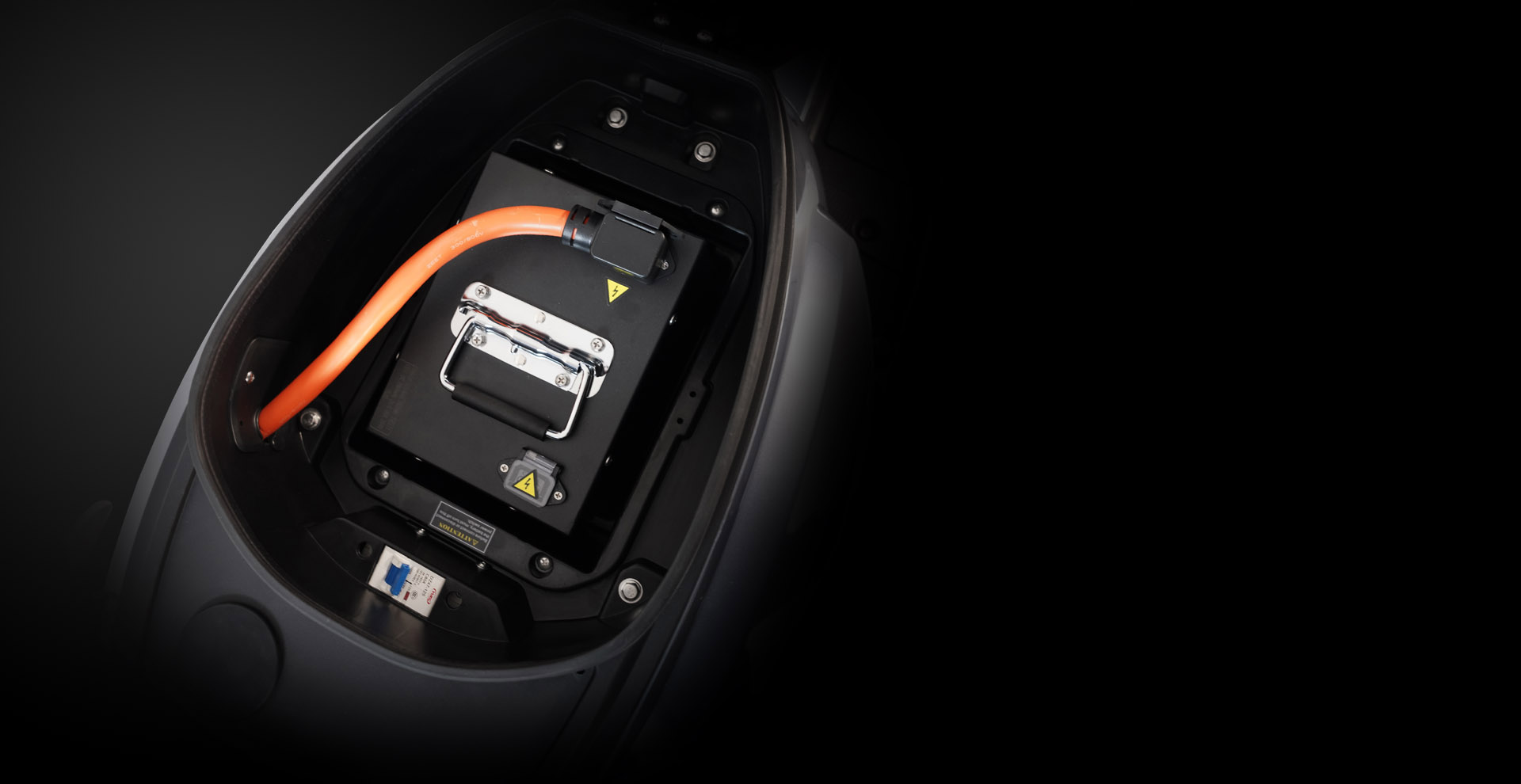

BATTERY SYSTEM

Reliable Energy for Electric Scooter & Electric Moped

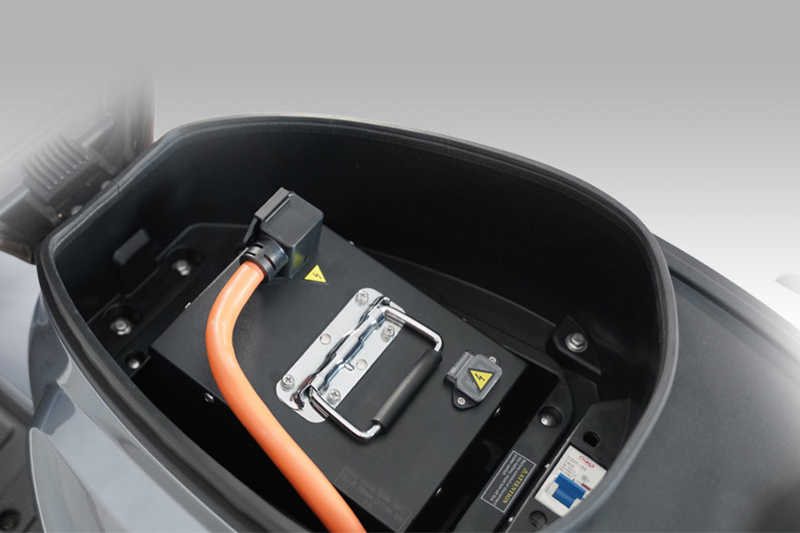

72V Lithium Battery System

Provides stable power output for daily commuting and urban riding.

Multiple Capacity Options (40Ah / 52Ah)

Flexible battery configurations for different range requirements.

Up to 100 km Range

Supports extended riding distance for urban electric scooter use.

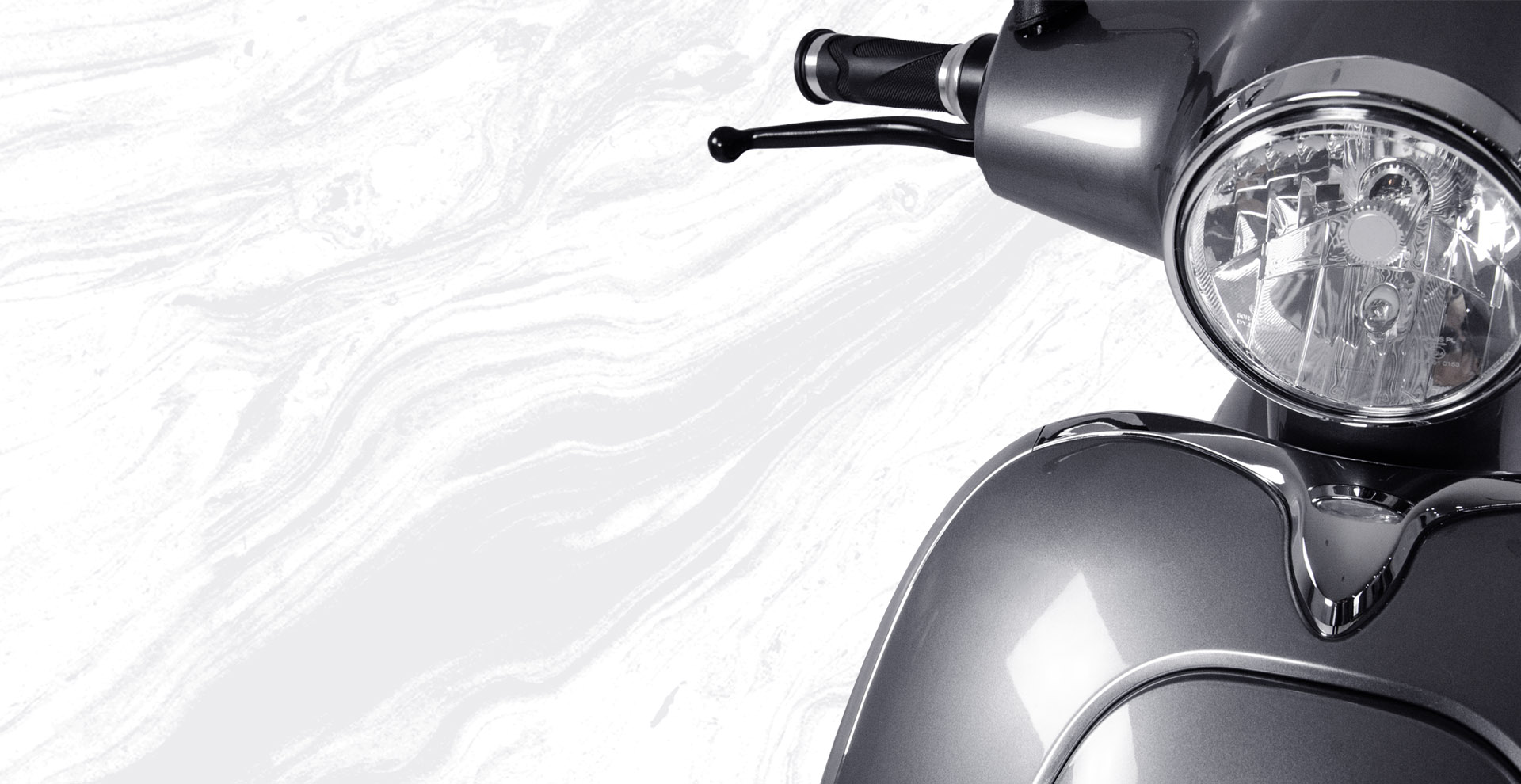

LED LIGHTING SYSTEM

High-Visibility Lighting for Safe Riding

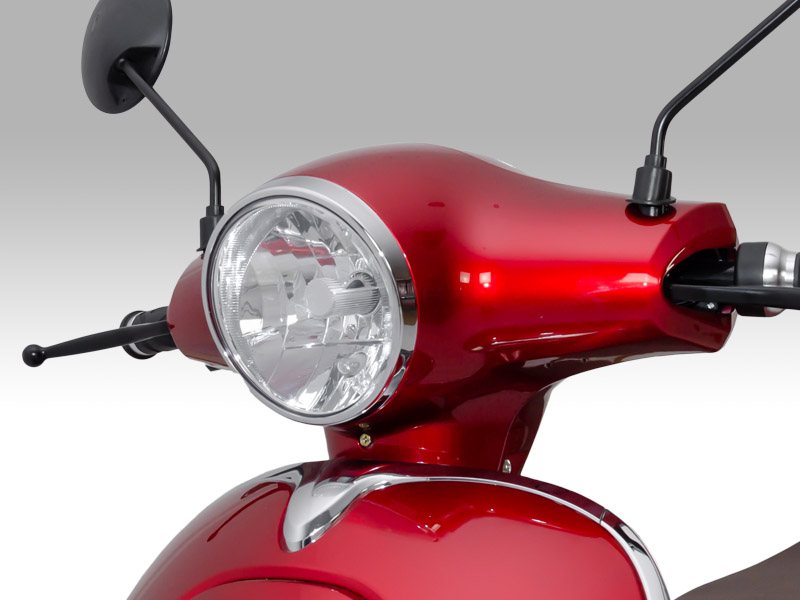

LED Headlights

Provides bright illumination for clear visibility in low-light conditions.

LED Turn Signals

Ensures clear signaling for safer direction changes.

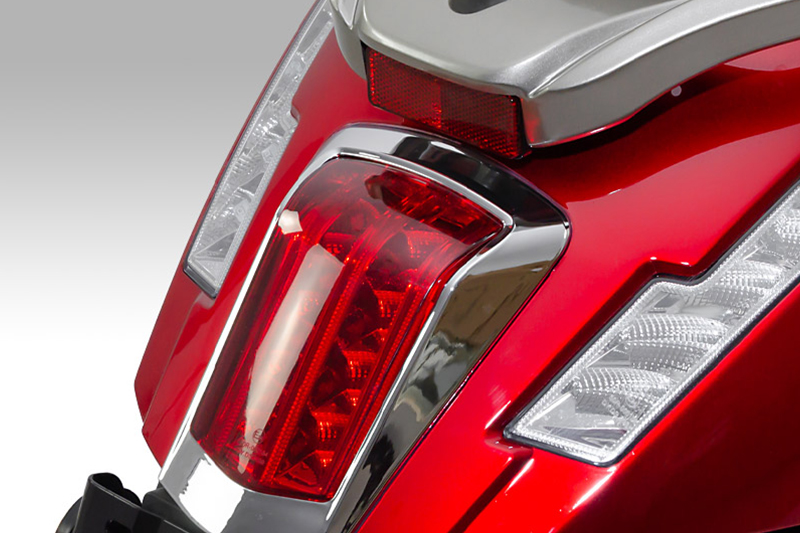

LED Tail Lights

Enhances rear visibility for improved safety in traffic.

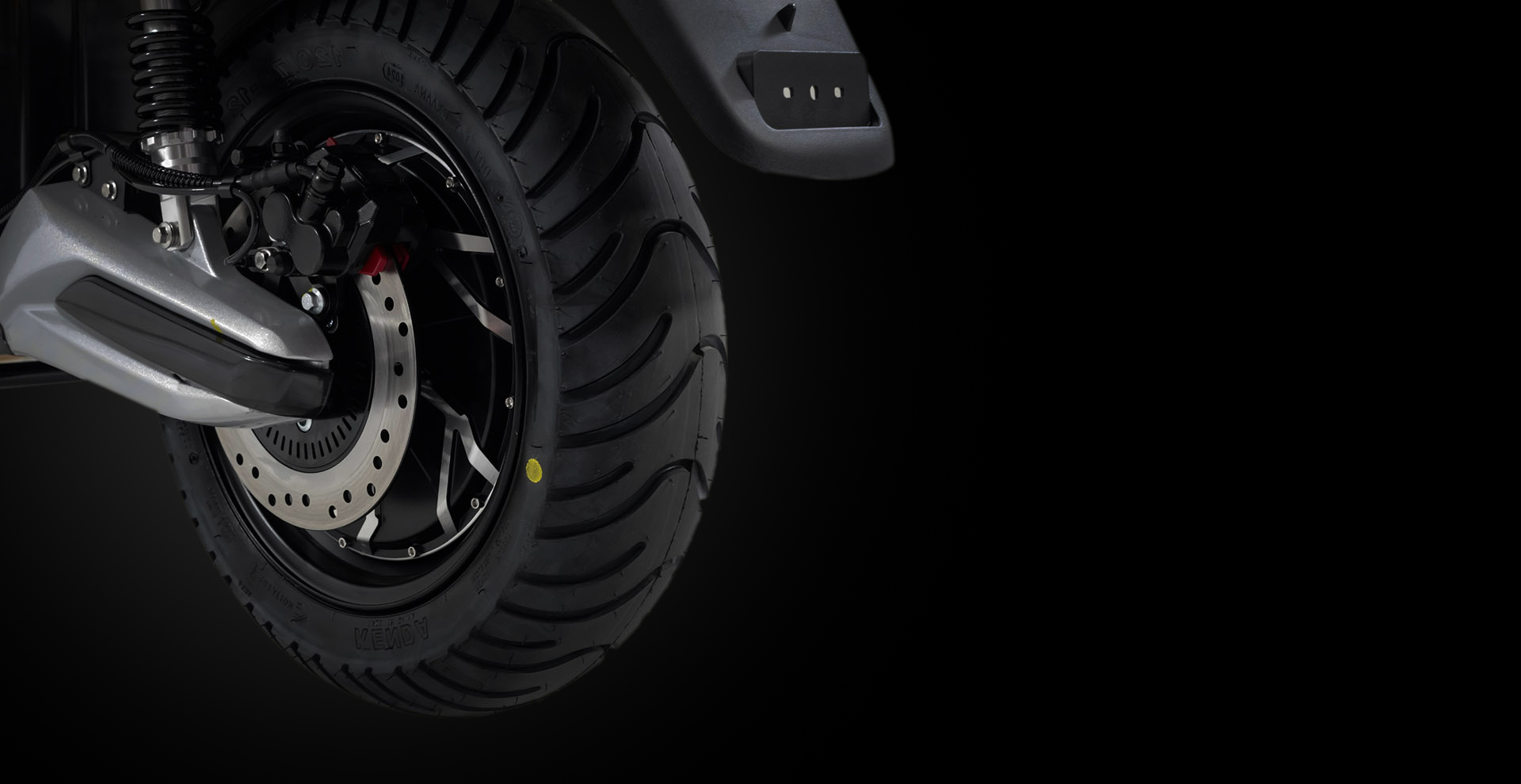

SUSPENSION SYSTEM

Smooth Riding with Hydraulic Suspension

Front Hydraulic Suspension

Absorbs shocks for improved comfort on urban roads.

Rear Hydraulic Suspension

Enhances stability and riding comfort on uneven surfaces.

F&R 120/70-12 Tubeless Tires

Provides strong grip and stable performance for daily riding..

Stardust Design Details

Modern Styling Meets Practical Performance

01.

LED Light System

Headlights, turn signals, and tail lights ensure full visibility and riding safety.

02.

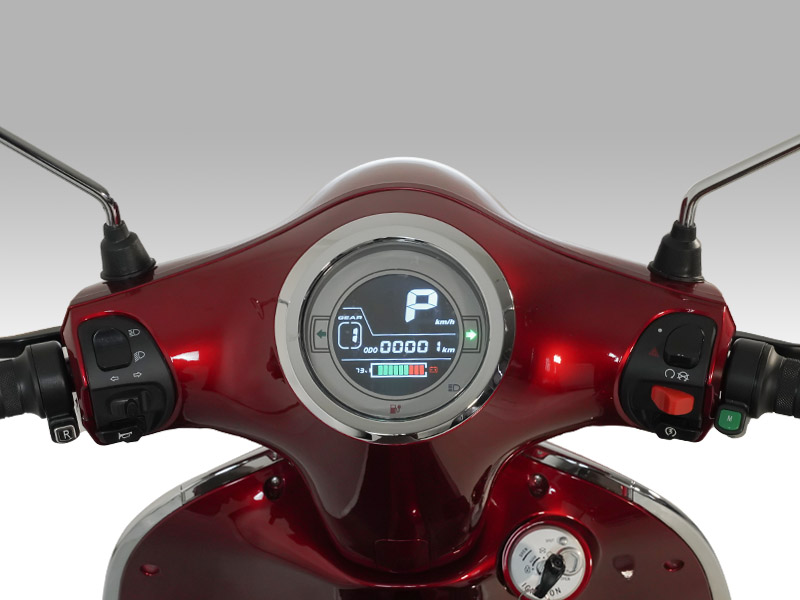

VA Negative LCD Display

Clear digital screen displays speed and riding information in real time.

03.

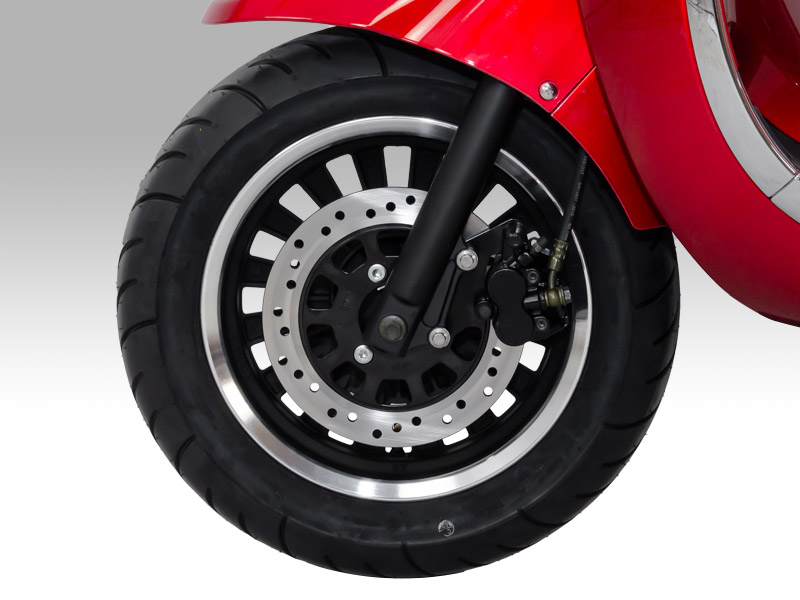

F&R Disc Brakes

Front and rear disc brakes provide reliable and responsive braking performance.

Specifications

MODEL	JS2A	JS2B	JS2A-145	JS2A-15
VEHICLE PARAMETERS
Size(L×W×H)	19026801140 (mm)	19026801140 (mm)	1902×680×1140(mm)	19026801140(mm)
Wheelbase	1325(mm)	1325(mm)	1325(mm)	1410(mm)
Saddle Height	770mm	770mm	770mm	770mm
Gross Weight	84kg(without battery）	84kg(without battery）	84kgs(without battery)	84kg(without battery）

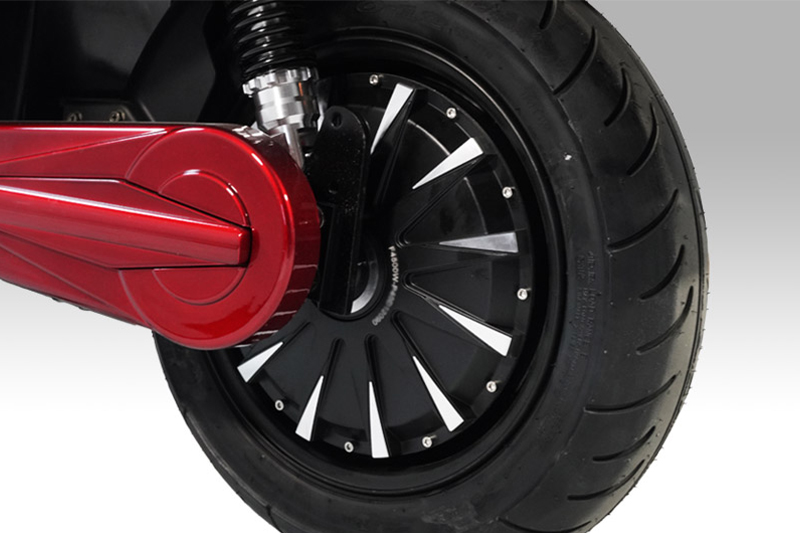

MOTOR&PERFORMANCE
Motor Type	12"40C brushless motor	12"35C brushless motor	12"40C brushless motor	12"45C large slot brushless
Rated Power	4000W	3000W	4500W	5000W
Max Speed	75km/h	45km/h	85km/h	90km/h
Battery Type	Ternary lithium battery	Ternary lithium battery	Ternary lithium battery	Ternary lithium battery
Battery Capacity	72V40Ah	72V40Ah	72V52AH	72V52Ah
Removable Battery	Yes	Yes	Yes	Yes
Range per charge (km)	65km(full speed)	85-90km(full speed)	60-70km(full speed)	65km(full speed)
Grade Ability	22°	20°	22°	25°
Charger	72V8A	72V8A	72V10A	72V10A
Charger time	5.5hours	5.5hours	5.5hours	5.5hours
VEHICLE STRUCTURE
FRAME	High-strength Carbon steel tube	High-strength Carbon steel tube	High-strength Carbon steel tube	High-strength Carbon steel tube
Suspensions	F&R hydraulic suspensions	F&R hydraulic suspensions	F&R hydraulic suspensions	F&R hydraulic suspensions
Tires	F&R 120/70-12 tubeless tyre	F&R 120/70-12 tubeless tyre	F&R 120/70-12 tubeless tyre	F&R 120/70-12 tubeless tyre
Brake system	F&R CBS linkage disc brakes	F&R disc brakes	F&R CBS linkage disc brakes	F&R CBS linkage disc brakes
CBS/ABS/TCS	CBS	TCS	CBS	CBS
ELECTRONICS
Dashboard	VA Negative LCD	VA Negative LCD	VA Negative LCD	VA Negative LCD
LIGHT SYSTEM	LED	LED	LED	LED
USB charging port	YES	YES	YES	YES

More Details & Optional

OEM Electric Scooter Solutions

Supports customization for electric scooter distributors, wholesalers, and brands.

Ensures stable factory supply with reliable quality and adaptable configurations.

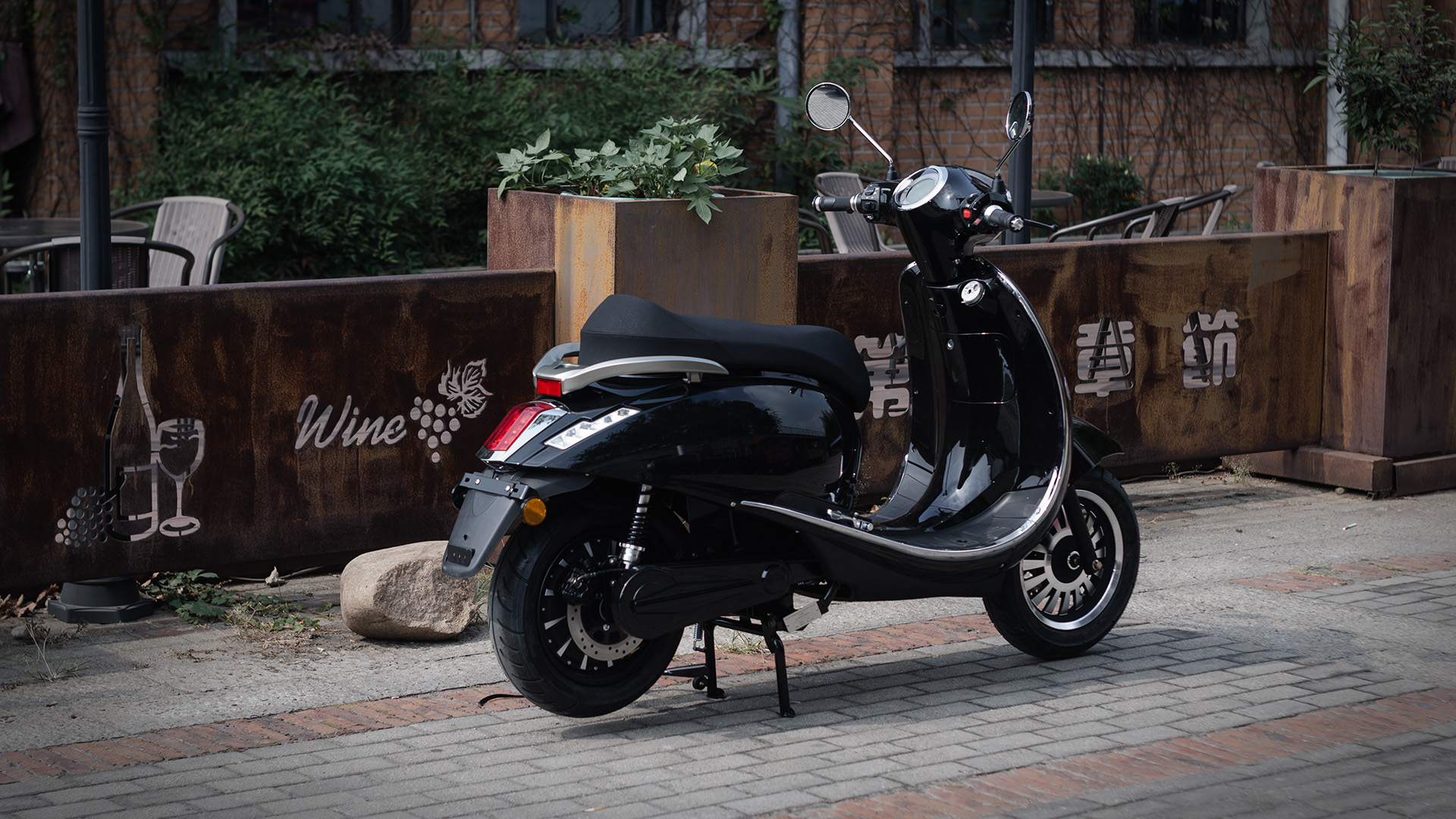

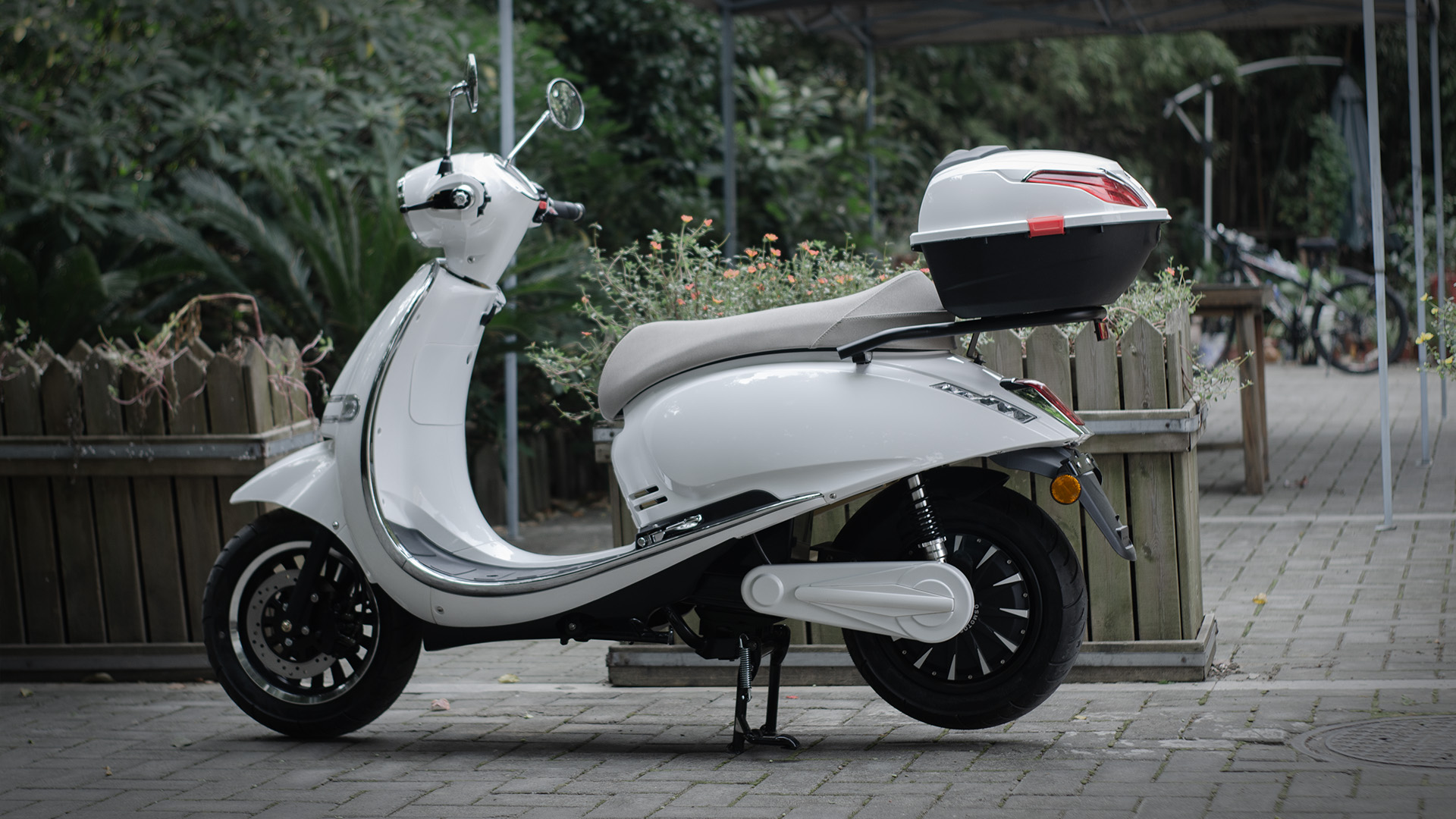

Gallery

Swan Series Urban Electric Scooter Showcase

Images featuring the Swan series electric scooters in urban environments, highlighting their style and presence.
